Automatic sampler Simplex 2700
Complete sampler Simplex 2700
Complete Simplex 2700 sampler with an attached 3/2-way pneumatic valve.
Simplex 2700 with and without manual operation
Simplex 2700 with and without manual operation. The Simplex 2700 sampler is the current model in the proven Simplex 2000 series. It closes with pneumatic pressure and operates in a range of 0.5 to 12 bar. The design insures a normally closed position up to pressures of 40 bar.
At the interface between the pneumatics and the sampler, the Simplex 2700 is sealed with an aseptic membrane and clamp connection. This ensures aseptic conditions.
An optional variant of the Simplex 2700 is to add a hand lever allowing manual opening of the sampler.
This is the ideal solution for occasional manual sampling, maintenance, or performing a “push-through” during CIP cleaning.
The Simplex 2700 model can be interchanged with other 2000 series models without a problem, provided the connection to the sample bottle is clamp to clamp.

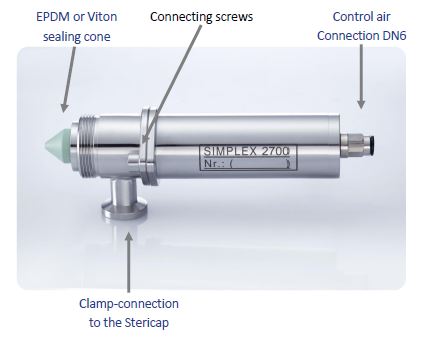

Simplex 2700 sampler
Simplex 2700 technical data
Gasket:
Metal cone with complete EPDM or Viton coating with the line pressure closing
Working air pressure:
min. 6 bar max. 8 bar
Technical data:
Version with EPDM or Viton sealing cone
Line pressure:
from 0.1 to 12 bar
Functionality:
up to 12 bar line pressure -control air pressure 8 bar
Line pressure surge:
up to max. 30 bar, without opening, no damage
Opening travel:
2 to 2.5 mm
Flow rate:
Medium water 6° Celsius; line pressure 2 bar; filling pipe Ø1 mm; approx. 300- 400ml/minute
Defect indicator:
Leakage hole next to the cylinder connection
Weight:
0.9 kg
Inch ID no.:
8479 8997
Maintenance effort:
approx. 2-3 minutes
Maintenance interval:
depending on the medium and cleaning interval, every 3 - 12 months
Simplex 2700 options
Optional: External cleaning / CO2
The sampler can also be optionally equipped with a cleaning valve. With this variant, it is possible to carry out intermediate cleaning or sterilisation between the normal CIP cleanings. It is also possible to fit an additional CO2 valve in order to maintain any required anaerobic condition in the sample bottle.
Automatic sampler with an automatic cleaning / CO2 valve.
Alternatively also available individually.
